LAPPING TOOLS AND FIXTURES

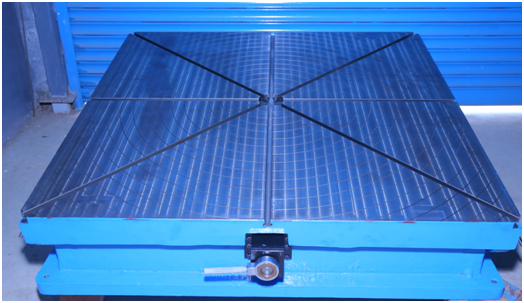

With its unique design a tilting table is a versatile piece of equipment that plays a crucial role in VALVE INDUSTRY

For easy alignment of valve body and wedges/disc during grinding and lapping of the sealing surfaces

Gate Valve Lapping Tools attachment to Client’s redial drilling machines with special adaptors for easy alignment and lapping of valve body and wedges.

The scope of delivery of the MTEIS MTT4 includes special tools

MTEIS TILTING TABLE MMT-4

ADAPTER MRDA-4 male drive

ADAPTER MRDA-4 female bushing

Clamping accessories for MTEIS MTT-4 Tilt table

Consisting of the following accessories.

Clamping plates : 6 pieces

Clamping pad : 6 sets

T-nut screws with washer : 6 sets

Combination spanner : 4 pieces

Allen Key set : 1 set

Screw driver set : 1 set

MTEIS Gate Valve Lapping Tools for size 8” to 48”

Planet-wheels for working range (8“-48“)

Planet-wheel : 3 piece

Planet-arm for different working range

Planet arm Type S : 12 pieces

Planet arm Type M : 12 pieces

Planet arm Type L : 12 pieces

Grinding spindles

Grinding spindle : 36 pieces
